Feature:
· Material: 45# Carbon Steel
· Surface: Self Color, Electro Galvanized, Hot Dip Galvanized
· Technology: Drop Forged
· Size: From 20T to 60T
· Brand: Sail Rigging
· Function: Welding Fixed
Feature:
· Material: 45# Carbon Steel
· Surface: Self Color, Electro Galvanized, Hot Dip Galvanized
· Technology: Drop Forged
· Size: From 20T to 60T
· Brand: Sail Rigging
· Function: Welding Fixed
Product introduction

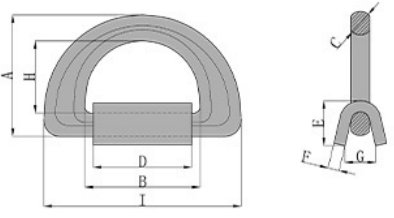

Specifications | WLL | Size(mm) | ||||||||
A | B | C | D | E | F | G | H | I | ||
20T | 5T | 87 | 90 | 18 | 80 | 24 | 10 | 42 | 50 | 137 |
25T | 6.25T | 109 | 112 | 20 | 90 | 25 | 10 | 48 | 69 | 170 |
30T | 7.5T | 102 | 88 | 21 | 80 | 24 | 10 | 42 | 58 | 144 |
36T小 | 9T | 112 | 100 | 24 | 90 | 35 | 12 | 50 | 66.5 | 165 |
36T大 | 9T | 124 | 130 | 23 | 120 | 30 | 12 | 45 | 76 | 208 |
41T | 10.25T | 137 | 143 | 26 | 120 | 48 | 12 | 50 | 87 | 225 |
50T | 12.5T | 140 | 137 | 27 | 120 | 48 | 12 | 50 | 86 | 227 |
50T | 12.5T | 144 | 123 | 27 | 115 | 40 | 12 | 50 | 90 | 220 |
60T | 15T | 151 | 139 | 27 | 135 | 37 | 14 | 52 | 90 | 240 |
